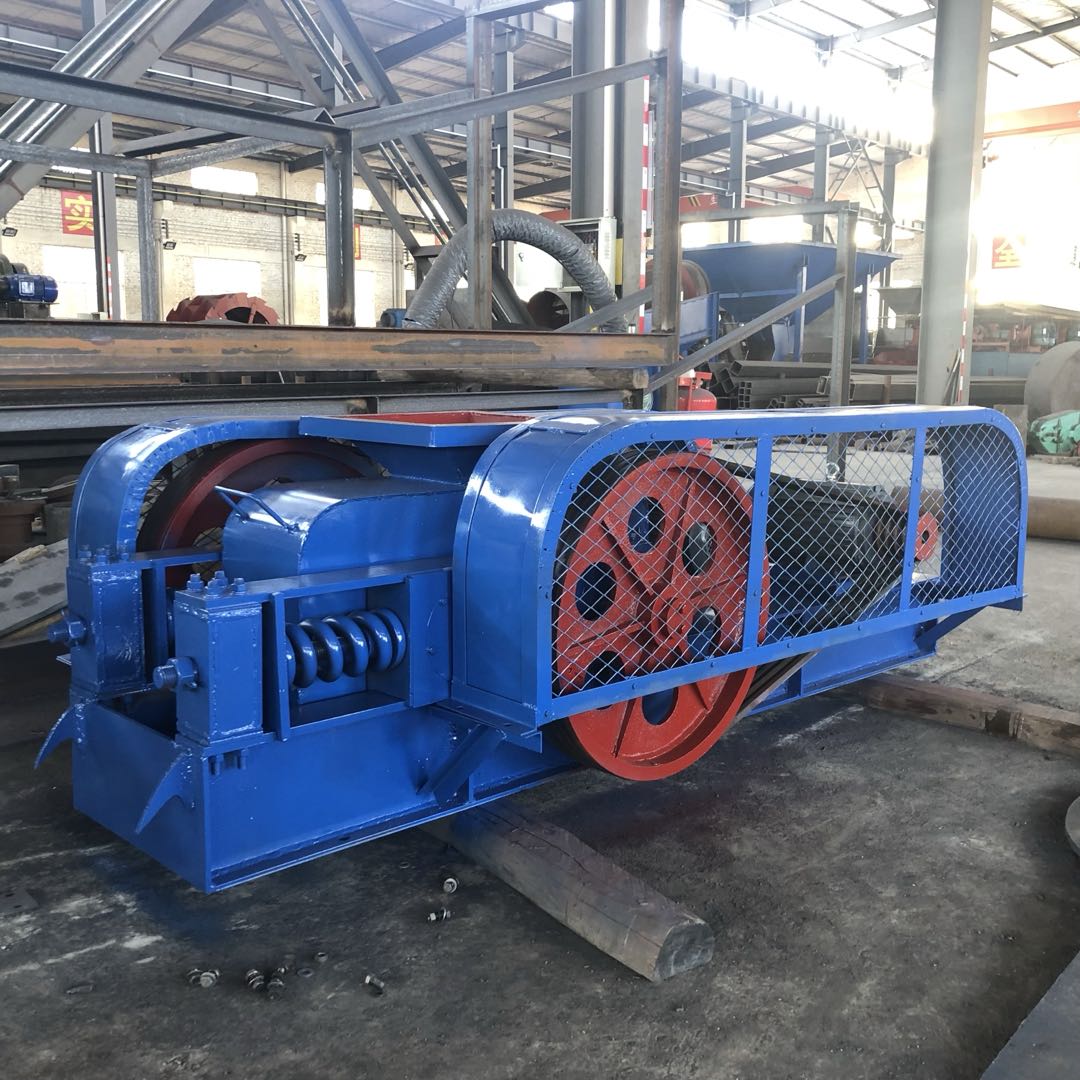

2PG型雙輥破碎機 Double-roll crusher
本機主要用于粗碎、中碎各級硬度的煤、焦炭及其它低硬度的脆性物料。
The two types of the machines are designed to be used for the coarse and medium reduction of various kinds of coal and coke as well as other brittle materials of low hardness.
本機由機架、機身、輥輪等部件組成。電動機通過三角皮帶傳動主軸輪使輥輪按照已調整好的軌跡進行運轉，將破碎腔機物料予破碎。
Such machine consists of the frame, the body, rollers, etc. The motor drives the main axis wheel through the triangle belt to get the rollers to operate along the already adjusted track so that the materials in the crusher can be crushed.
| 型號規格 Model | 輥子尺寸 Rotor size | 進料粒度 Inlet size | 出料粒度 Output size | 產量Capacity | 功率Power | 質量Weight |
| mm | mm | mm | t/h | kw | t | |
| 2PG400×250 | Φ400×250 | 32 | ≤8 | 10 | ≤15 | ≤1.4 |
| 2PG600×400 | Φ600×400 | 39 | ≤4 | ≤32 | ≤37 | ≤3.6 |
| 2PG610×750 | Φ610×750 | 45 | ≤3 | ≤30 | ≤55 | ≤7.3 |
| 2PG750×500 | Φ750×500 | 50 | ≤5 | ≤49 | ≤45 | ≤7.65 |
| 2PG900×900 | Φ900×900 | 40 | ≤10 | ≤45 | ≤75 | ≤18.4 |
| 2PG1000×800 | Φ1000×800 | 40 | ≤10 | ≤70 | ≤90 | ≤25.2 |
| 2PG1200×800 | Φ1200×800 | 30 | ≤8 | ≤75 | ≤90 | ≤25.9 |
| 2PG1200×1000 | Φ1200×1000 | 40 | ≤12 | ≤150 | ≤110 | ≤51 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
