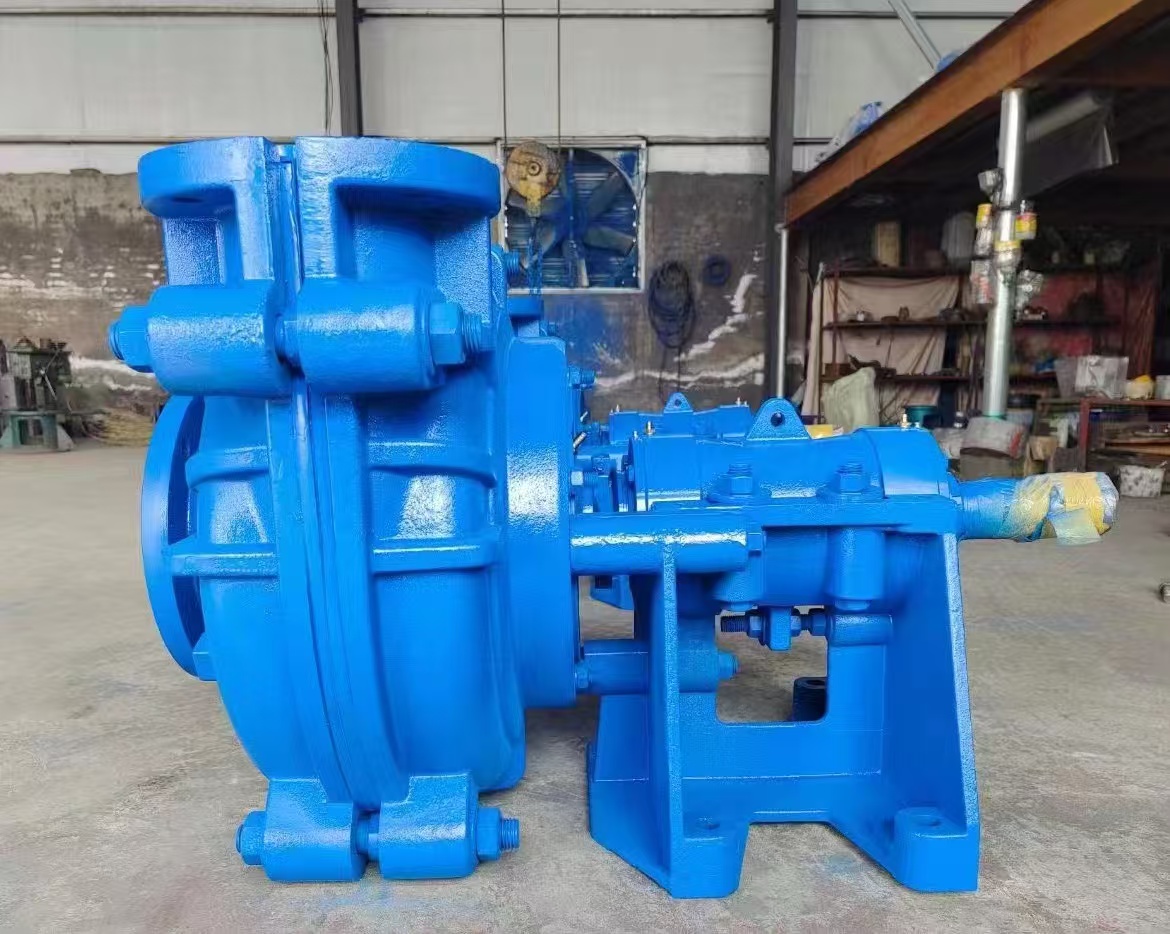

PH-2型臥式砂泵 type horizontal sand pump

一、概述I. OverviewPH—2型泵系單級單吸離心式襯膠泵，可輸送各類不含有尖角的圓體顆粒的礦漿。輸送礦漿****濃度不超過65%（重量計），溫度不得超過60℃。專用于輸送有腐蝕性礦漿。Pump model PH-2, as a single stage single suction centrifugal rubber lined pump, can be used to convey

一、概述
I. Overview

PH—2型泵系單級單吸離心式襯膠泵，可輸送各類不含有尖角的圓體顆粒的礦漿。輸送礦漿****濃度不超過65%（重量計），溫度不得超過60℃。專用于輸送有腐蝕性礦漿。

Pump model PH-2, as a single stage single suction centrifugal rubber lined pump, can be used to convey various ore pulps with round particles without sharp angles, of which the concentration does not exceed 65% (in weight) and the temperature shall not exceed 60℃. This pump is particular ideal for conveyance of corrosive pulp.

根據用途不同，泵軸分別用優質碳素鋼、鎳鉻鋼制成，護套分別為耐磨橡膠、耐磨耐酸橡膠與鋼板合制制而成，葉輪為鑄鋼制骨架，分別外襯耐磨橡膠、耐磨耐酸橡膠制成，泵的旋轉方向，從傳動方向看為逆時針旋轉。

Depending on the purposes, pump spindle is made of quality carbon steel and nickel-chrome steel; the sheath is made of abrasive rubber, wear resistant and acid-resisting rubber and steel plate; impeller is provided with a steel frame externally lined with abrasive rubber and abrasion-proof and acid-resisting rubber. Viewed from the drive, the pump rotates counterclockwise.

二、結構圖
II. Structure Diagram

1. pump body 2. pump cover 3. impeller 4. spindle 5. front sheath 6. rear sheath. 7. pedestal 8. pedestal cap 9. auxiliary impeller 10. gland box 11. support

三、外形安裝尺寸圖
III. Overall Installation Dimension Diagram

Installation dimensions of horizontal sand pump model

四、外形安裝尺寸表

砂泵型號 Sand Pump Model	電機功率 Motor Power	A	B	C	D	E	L1	L2	L3	H1	H2	H3	N	h	n-d	e
PH-2	11kw 18.5kw	600	550	919	610		890	860	260	400	443	243	157	40	4-Ф27	270

砂泵型號 Pump Model	三角皮帶 V-belt		皮帶輪 Pulley		進口法蘭 Inlet flange				出口法蘭 Outlet flange
砂泵型號 Pump Model	型號 model	根數Root number	D1×B1	D2×B2	a1	b1	c1	n1-d1	a2	b2	c2	n2-d2
PH-2	c	4	Ф267×112	Ф334×112	Ф100	Ф180	Ф215	4-Ф18	Ф50	Ф130	Ф160	4-Ф19
